Wire Mesh Welding Machine GWCP800T
I WANT TO BUY PRODUCTS

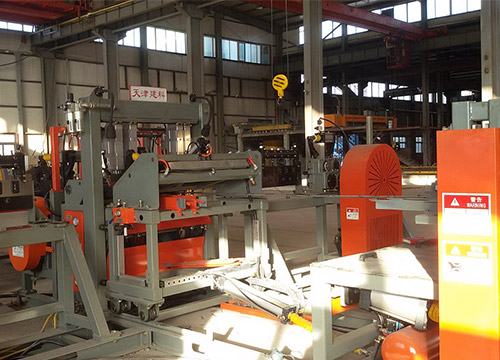

Wire Mesh Welding Machine GWCP800T

Technical Data of Wire Mesh Welding Machine GWCP800TMax Width2*160mmLine wire gap70mm-120mmCross wire gap≥100mmLine wire diameter8mm-12mm coilCross wire diameter6mm-8mm coilMax speed 40-60 strokes/mi...
CONTACT NOW
Wire Mesh Welding Machine GWCP800T VIDEO
Features Related Products More Detail

Features of Wire Mesh Welding Machine GWCP800T

  • 1

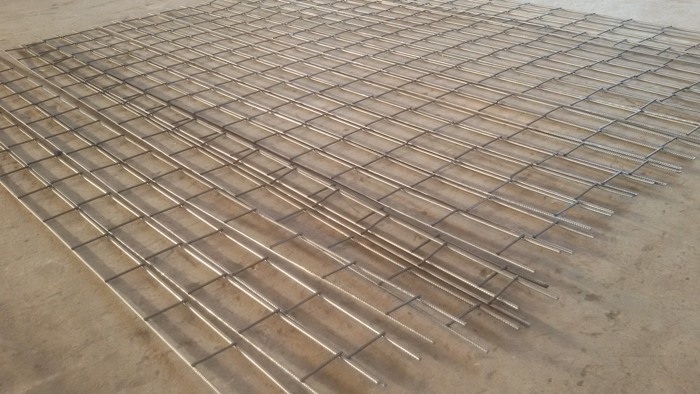

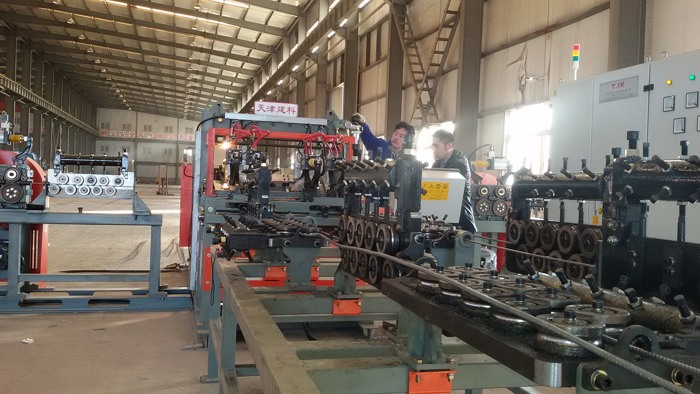

    GWCP800-T is workable with 2 pieces width 75mm-200mm ladder shape mesh,high quality which no burr on the cross wire.

  • 2

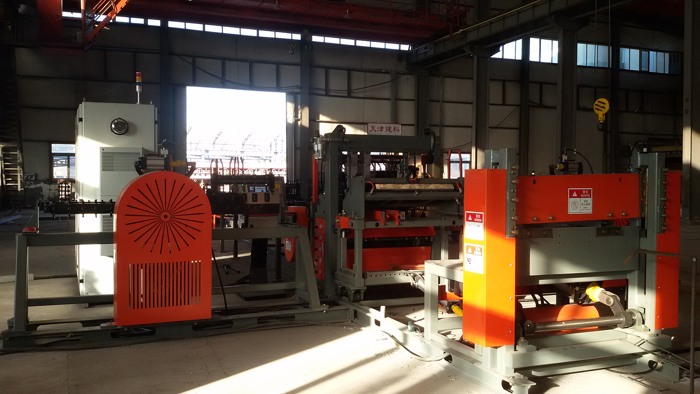

    Both line wire and cross wire are coil wires, full automatic high-efficiency production high-quality product.

  • 3

    Line wire diameter 5-12mm, cross wire diameter 5-8mm.

  • 4

    Welding speed 50-60 strokes/min.

  • 5

    Only one operator is needed low cost.


Related Products Wire Mesh Welding Machine GWCP800T


  • Double Coil Wires Mesh Welding Machine HW-WZD12
    LAYOUTCharacteristics:Different diameter wires can be mounted on the wire payoffs at the same time, it can automat Double Coil Wires Mesh Welding Machine HW-WZD12
  • Wire Mesh Welding Machine GWCP 2400/2800/3300JZ-B
    Wire Mesh Welding Machine GWCP2400/2800/3300JZ-B has advanced technology is introduced from Europe,lots of parts have patent for invention,the high efficiency also high endurance and humane designs are safe and reliable Wire Mesh Welding Machine GWCP 2400/2800/3300JZ-B
  • Wire Mesh Welding Machine GWCP800T
    Technical Data of Wire Mesh Welding Machine GWCP800TMax Width2*160mmLine wire gap70mm-120mmCross wire gap≥100mmLine wire diameter8mm-12mm coilCross wire diameter6mm-8mm coilMax speed 40-60 strokes/mi... Wire Mesh Welding Machine GWCP800T
  • Farming Wire Mesh Welding Machine GWCP1200XM-B
    High precision of PLC control,LCD display is easy for operating,have mighty graphics library,it is able to communicate with management software; Farming Wire Mesh Welding Machine GWCP1200XM-B
  • Wire Mesh Welding Machine GWCZ 2400/2600/2800/3300JZ-B
    Wire Mesh Welding Machine GWCZ2400 2800 3300JZ-B has advanced technology is introduced from Europe,lots of parts have patent for invention,the high efficiency also high endurance and humane designs are safe and reliable Wire Mesh Welding Machine GWCZ 2400/2600/2800/3300JZ-B
  • Engineered Mesh Welding Line GWCAK3300
    Highly flexible and fully automatic welding line for the production of mesh sheets and reinforcing elements allowing processing different wire diameters and producing different openings No change-over times needed for the production of different sheet. Engineered Mesh Welding Line GWCAK3300
  • Wire Mesh Welding Machine GWC (P) 600-E
    Wire Mesh Welding Machine GWC(P)600-E has advanced technology is introduced from Europe,lots of parts have patent for invention,the high efficiency also high endurance and humane designs are safe and reliable; Wire Mesh Welding Machine GWC (P) 600-E
  • Wire Mesh Welding Machine GWC 2400/2800/3300
    Wire Mesh Welding Machine GWCZ2400/2800/3300 has advanced technology is introduced from Europe,lots of parts have patent for invention Wire Mesh Welding Machine GWC 2400/2800/3300

More Detail Wire Mesh Welding Machine GWCP800T

Technical Data of Wire Mesh Welding Machine GWCP800T

Max Width

2*160mm

Line wire gap

70mm-120mm

Cross wire gap

≥100mm

Line wire diameter

8mm-12mm coil

Cross wire diameter

6mm-8mm coil

Max speed

40-60 strokes/min

Welding points

4

Welding capacity

12mm+8mm

Air consumption

≥0.7MPa,3.0m³/min

Water consumption

≥0.2MPa,0.5m³/min

Power

2*100KVA

Voltage

DC24V

Max length

3M-4M
