Unwinding and straightening systems for the three longitudinal wires and the two continuous diagonal wires Two roller type straightening devices for the two continuous diagonal wires
Features of Truss Girder Welding Machine SJL300T-10
Installed power is only 250KVA which is the lowest in the industry, low cost.
Active wire payoffs reduces feeding resistance which is workable with different size wires.
Passive feeding device is high speed with little length accuracy, high stability.
Anti-twist device, anti - lateral bending device and groups of straightening devices working together ensures wire straightness is lower than 5mm/m.

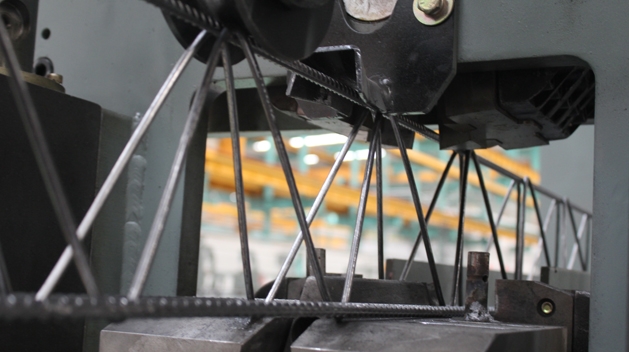

Mechanical shearing system are being used which reduce cost of maintenance and replace of hydraulic oil, then there is no problem caused by pollution of hydraulic oil and noise.
Simple structure of collecting equipment, low cost maintenance.
Mainly used in housing industry, workable with no foot truss girder.
Related Products Truss Girder Welding Machine SJL300T-10
The shearing process driven by one motor, good synchronization,easy operation, installed power is only 7.5KW. It is workable with longitudinal wire diameter 4-12mm, Diagonal wire diameter 3-7mm, height 65-300m, the truss girder can be cut at any position
Machine is controlled by high-precision PLC which is also high production, high speed, high durability, high wel ding quality, input through touchable screen which is easy operation and equipped with ...
Machine is controlled by high-precision PLC which is also high production, high speed, high durability, high wel ding quality, input through touchable screen which is easy operation and equiped with powerful data base. Girder height 70-280mm, length 2-14m
Unwinding and straightening systems for the three longitudinal wires and the two continuous diagonal wires Two roller type straightening devices for the two continuous diagonal wires
More Detail Truss Girder Welding Machine SJL300T-10
Technical Data of Truss Girder Welding Machine SJL300T-10
