Truss Girder Welding Machine SJL100-10

Name: Truss Girder Welding Machine SJL100-10
Brand: TJK Machinery (Tianjin) Co, Ltd

The machine is for making truss girder used for railway sleeper, the whole parts are special designed for the industry.

CONTACT NOW

Truss Girder Welding Machine SJL100-10 VIDEO

Features Related Products

Features of Truss Girder Welding Machine SJL100-10

The machine is for making truss girder used for railway sleeper, the whole parts are special designed for the industry.

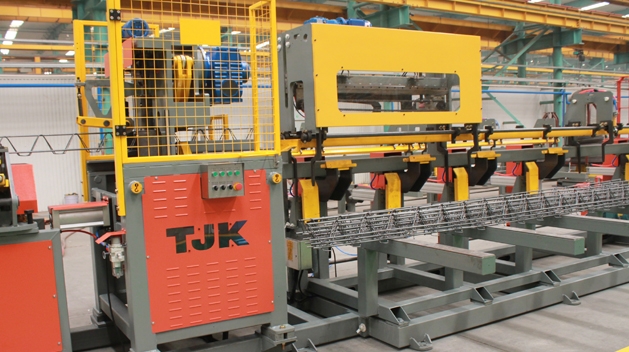

Installed power is only 400KVA which is the lowest in the industry, low cost.
Special wire payoffs are designed for truss girder used for railway sleeper.
Anti-twist device, anti - lateral bending device and groups of straightening devices working together ensures wire straightness is lower than 5mm/m.

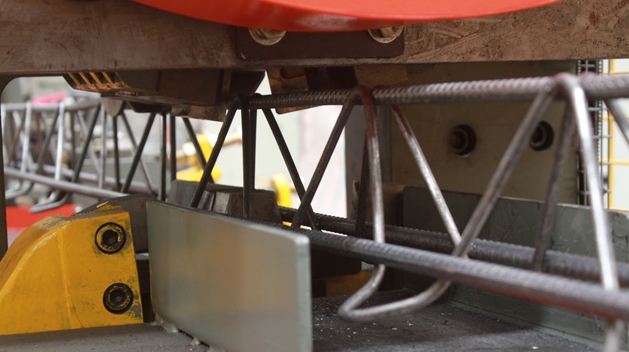

Special designed mechanical shearing system ensures deflection below ±2mm.
