Wire Straightening and Cutting Machine GT1.8-3
I WANT TO BUY PRODUCTS

Wire Straightening and Cutting Machine GT1.8-3

Wire Straightening and Cutting Machine GT1 8-3 fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 35m min, 3-4 times that of domestic similar products.
CONTACT NOW
Wire Straightening and Cutting Machine GT1.8-3 VIDEO
Features Related Products More Detail

Features of Wire Straightening and Cutting Machine GT1.8-3

  • 1
    The machine has no pneumatic device, low environmental requirement;
  • 2
    The machine has descaling mechanism which makes wires clean;
  • 3
    Conveying mechanism has screen which can let workers directly read pressure data which is accurate and convenient;
  • 4
    Small size wires can be cut;
  • 5

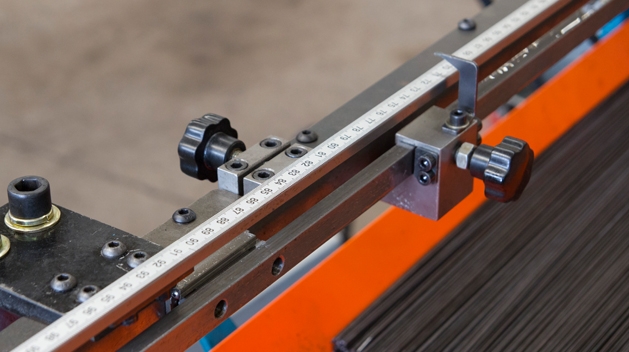

    Fine made unloading rack, wire length can be read directly from the ruler which can be easily adjusted;
  • 6

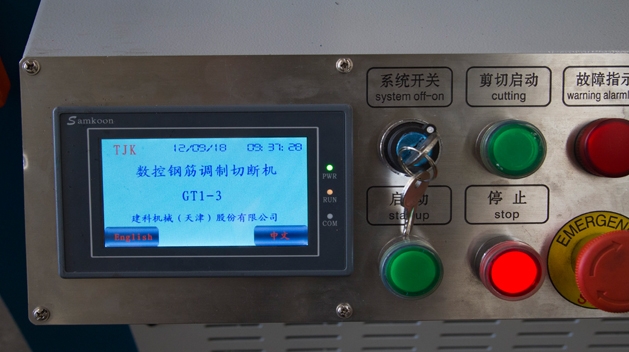

    Electronic control system with 4-wire high-precision touch screen, it can be stable and reliable work within -10~ 65℃.

Related Products Wire Straightening and Cutting Machine GT1.8-3


  • Wire Straightening and Cutting Machine GT3-7
    Wire Straightening and Cutting Machine GT3-7(automatic wire cutter machine) fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 100m min, 3-4 times that of domestic similar products. Wire Straightening and Cutting Machine  GT3-7
  • Wire Straightening and Cutting Machine 8-14Q
    Wire Straightening and Cutting Machine GT8-14Q (wire cutting machines) fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 130m min, 3-4 times that of domestic similar products. Wire Straightening and Cutting Machine 8-14Q
  • Wire Straightening and Cutting Machine GT5-12Q
    Wire Straightening and Cutting Machine GT5-12Q (wire straighteners) fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 130m min, 3-4 times that of domestic similar products. Wire Straightening and Cutting Machine GT5-12Q
  • Wire Straightening and Cutting Machine WGT12
    Roller straightening mechanism being used which ensures ribs damage being reduced by 50%, working noise reduced by 30%, dirt pollution reduced by 30%. Wire Straightening and Cutting Machine WGT12
  • Wire Straightening and Cutting Machine GT1.8-3
    Wire Straightening and Cutting Machine GT1 8-3 fast in straightening and cutting: Our product could reach a highest straightening and cutting speed of 35m min, 3-4 times that of domestic similar products. Wire Straightening and Cutting Machine GT1.8-3
  • Wire Straightening and Cutting Machine GT8-12
    Stable and reliable flying-shear shear ensures high production,all have passed continuous three hundred thousand times test which is high frequency and high working conditions. Wire Straightening and Cutting Machine GT8-12

More Detail Wire Straightening and Cutting Machine GT1.8-3

Characteristics of Wire Straightening and Cutting Machine GT1.8-3

  • Wire Straightening and Cutting Machine GT1.8-3 fast in straightening and cutting: Our product could reach the highest straightening and cutting speed of 35m/min, 3-4 times that of domestic similar products.
  • Wire Straightening and Cutting Machine GT1.8-3 Suitable for new 3rd-grade steel: The straightening performance of our products is unique, and suitable for straightening and cutting cold rolled ribbed steel bar and new 3rd-grade steel which is promoted by the government.
  • Wire Straightening and Cutting Machine GT1.8-3 intelligent control: We adopt PLC to control. Operate, regulate and remote control, which is easy and reliable.

Technical Data of Wire Straightening and Cutting Machine GT1.8-3

Raw material

smooth wires in coil

Production capacity

Φ1.8 – Φ3[mm]

Traction Speed

35 [m/min]

Cutting length

200 – 1,500 [mm]

Stocking pocket

2m

Cutting speed

1,250 nos/min

Length gauge

Manual

Linearity of straightening

≤2 [mm/m]

Tolerance of cut-to-length

≤±1 [mm]

Feeding and straightening motor

1.5[Kw]

Cutting motor

0.55[Kw]

Overall dimension

6,000×800×1,200mm (L×W×H)
