Truss Girder Welding Machine SJL300T-18
I WANT TO BUY PRODUCTS

Truss Girder Welding Machine SJL300T-18

Machine is controlled by high-precision PLC which is also high production, high speed, high durability, high wel ding quality, input through touchable screen which is easy operation and equiped with powerful data base. Girder height 70-280mm, length 2-14m
CONTACT NOW
Features Related Products More Detail

Features of Truss Girder Welding Machine SJL300T-18

  • 1
    Wire payoffs are actively wire feeding which can reduce the feeding resistance,it is capable working with different kinds of wires.
  • 2
    It is capable of produce girders with foot or without, just need very easy adjustment to finish.
  • 3
    Side wires are made by mechanical swing rod structure and rotating feeding ensure synchronization performance and stable feeding.
  • 4
    Open type welding mechanism ensures easy maintenance and adjustment.
  • 5
    Shearing method is mechanical which replaced hydraulic which save cost of maintanance and hydraulic oil, also avoid oil licking and noise.
  • 6

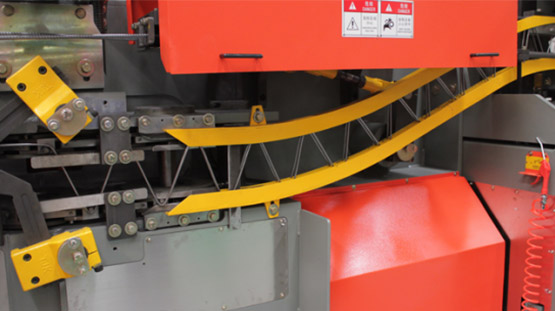

    Passive step feeding mechanical speed fast, little length error and stable.
  • 7
    Automatic stacking system can save manpower of two people.
  • 8
    Installed power is just 320KVA.

Related Products Truss Girder Welding Machine SJL300T-18


  • Truss Girder Welding Machine SJL100-10
    The machine is for making truss girder used for railway sleeper, the whole parts are special designed for the industry. Truss Girder Welding Machine SJL100-10
  • Truss Girder Welding Machine SJL320T-36
    Machine is controlled by high-precision PLC which is also high production, high speed, high durability, high wel ding quality, input through touchable screen which is easy operation and equipped with ... Truss Girder Welding Machine SJL320T-36
  • Truss Girder Cutting Machine SJLQ300
    The shearing process driven by one motor, good synchronization,easy operation, installed power is only 7.5KW. It is workable with longitudinal wire diameter 4-12mm, Diagonal wire diameter 3-7mm, height 65-300m, the truss girder can be cut at any position Truss Girder Cutting Machine SJLQ300
  • Truss Girder Welding Machine SJL300T-18
    Machine is controlled by high-precision PLC which is also high production, high speed, high durability, high wel ding quality, input through touchable screen which is easy operation and equiped with powerful data base. Girder height 70-280mm, length 2-14m Truss Girder Welding Machine SJL300T-18
  • Truss Girder Welding Machine SJL300T-10
    Unwinding and straightening systems for the three longitudinal wires and the two continuous diagonal wires Two roller type straightening devices for the two continuous diagonal wires Truss Girder Welding Machine SJL300T-10

More Detail Truss Girder Welding Machine SJL300T-18

Machine is controlled by high-precision PLC which is also high production, high speed, high durability, high wel ding quality, input through touchable screen which is easy operation and equiped with powerful data base. Girder height 70-280mm, length 2-14m(multiple of 200mm), speed 12-18m/min, it owns many patents.
