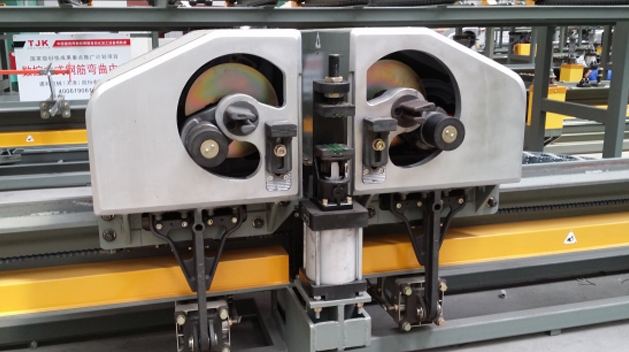

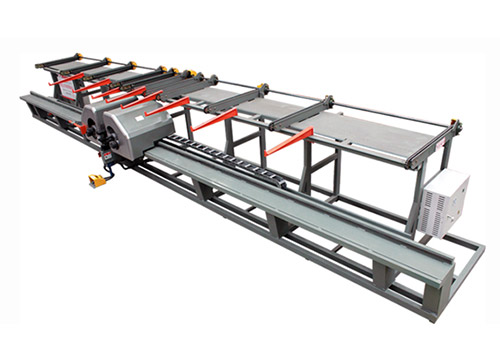

Rebar Bending Line G2L32E-2 (10-32 mm)
I WANT TO BUY PRODUCTS

Rebar Bending Line G2L32E-2 (10-32 mm)

Rebar Bending Line G2L25 G2L32E-2(bar benders) has advanced technology is introduced from Europe,lots of parts have patent for invention,the high efficiency also high endurance and humane designings are safe and reliable
CONTACT NOW
Rebar Bending Line G2L32E-2 (10-32 mm) VIDEO
Features Related Products More Detail

Features of Rebar Bending Line G2L32E-2 (10-32 mm)

  • 1
    The whole machine without air, avoid the air leakage, pollution and other issues, easy for maintenance;
  • 2

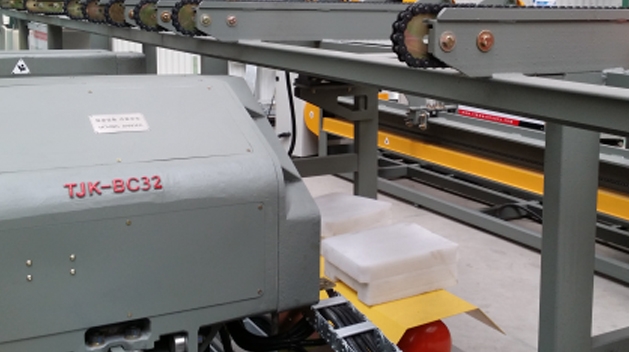

    The integrated Machine structure, easy transportation, fast installation and debugging;
  • 3

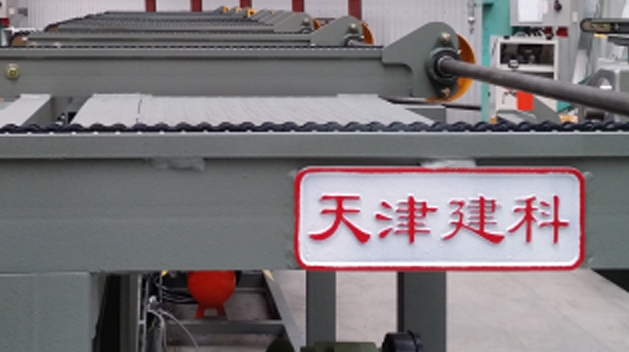

    Gear rack drive, positioning accuracy, low noise;
  • 4

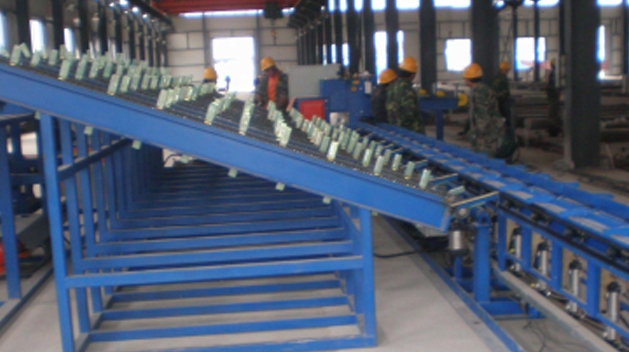

    Electric chain rail material storage conveyor platform, take material save effort;
  • 5
    Only one person operation, high production efficiency;
  • 6
    Processing the largest diameter  is 32mm;
  • 7
    Equipment has a test function, to achieve bending steel no waste;

Related Products Rebar Bending Line G2L32E-2 (10-32 mm)


  • Rebar Bending Line G2L32E-2 (10-32 mm)
    Rebar Bending Line G2L25 G2L32E-2(bar benders) has advanced technology is introduced from Europe,lots of parts have patent for invention,the high efficiency also high endurance and humane designings are safe and reliable Rebar Bending Line G2L32E-2 (10-32 mm)
  • Rebar Bending Line G2W50 (10-50 mm)
    Technical Data: Overall Diameter:12500 2200X1020(mm) Bending Speed:9r p m Bender Moving Speed:0 5~ 1m s Power Supply:380V 50H Rebar Bending Line G2W50 (10-50 mm)
  • Rebar Bending Line G2L25X (10-25 mm)
    Rebar Bending Line G2L25/G2L32E-2(bar bender machine) is precisely working with angle,maximum diameter for bending is 60mm; Rebar Bending Line G2L25X (10-25 mm)

More Detail Rebar Bending Line G2L32E-2 (10-32 mm)

Dimensions of Rebar Bending Line G2L32E-2

11500X2100X1500 (mm) The whole structure of the machine, easy transport, no need fixed, full mechanical transmission structure, no need gas source, low noise, easy maintenance, mechanical and electrical integration design, advanced control module, The equipment head movement is equipped with a test function ,to achieve the bending steel generated; can achieve two-way automatic bending of the steel bar, the workpiece can be used to improve the size of the workpiece, The maximum diameter of the curved bars is ø32.

Characteristics of Rebar Machinery Rebar Bending Line G2L32E-2

  • Rebar Bending Line G2L25/G2L32E-2(bar benders) has advanced technology is introduced from Europe,lots of parts have patent for invention, the high efficiency also high endurance and humane designings are safe and reliable;
  • High precision of PLC control,it is powerful database inside, no need manual adjustment;
  • Rebar Bending Line G2L25/G2L32E-2(bar bender machine) is precisely working with angle,maximum diameter for bending is 32 mm;
  • Rebars can be bent by double-shaft, workable of direction from forward and reverse; More than one rebar can be bent at the same time,bending range 0°-180°;the service life and efficiency are greatly improved by the bending units which made by special materials;the workers safety are ensured by the covering of the machine(bar benders) ;
  • TJK Rebar Bending Line G2L25/G2L32E-2(bar benders)  have been sold more than 300 pcs around the world

Technical Data of Rebar Bending Line G2L32E-2

Bending capacity

Clockwise: Φ10 – Φ25 [mm]

Anti-clockwise: Φ10 – Φ32 [mm]

Max. bending

angle

Clockwise: 120°

Anti-clockwise: 180°

Max. bending sides

length

10 [m]

Min. bending side

length

Φ10mm 560mm

Φ32mm 620mm

Min. bending hook length

80 [mm]

Bender move

speed

0.5 – 1 [m/s]

Bending speed

48-72°/S

Installed power

10.5 [KW]

Air pressure

≥ 0.6 [Mpa]

Average power

consumption

4 [KW/h]

Voltage

380 [V] – 50[Hz]

Overall weight

5500 [KG]

Overall diameter

11050X2100X1520 [mm]

Bars diameter

(max tensile strength 750Mpa

Φ10

Φ12

Φ14

Φ16

Φ18

Φ20

Φ22

Φ25

Φ28

Φ32

Bending bars no°

6

5

4

3

2

2

2

1

1

1
